PRODUCT

(9) Encoder / Decoder IC

P/N Package Type Function Work
Voltage
Data
Sheet
Special
Instruction
HK526E

DIP-18L

SOP-20L

* 12 address bus & 4 data bus
* 4096 codes for encoding code ( transmitting code ) setting option
* A pair with HK526A decoder ( receiver ) for application kit
3V ~ 13.6V HK526E Typical working voltage at 12V

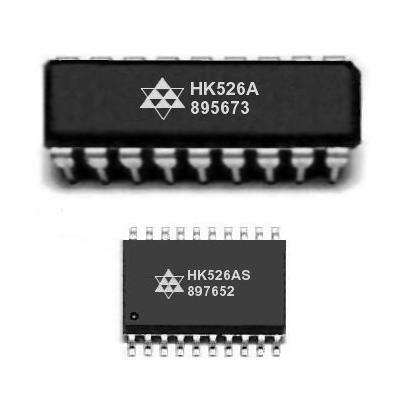

HK526A

DIP-18L

SOP-20L

* 12 address bus & 4 data bus
* 4096 codes for decoding code ( receiving code ) setting
* Output data signal by latch type and momentary type available
* A pair with HK526E encoder ( transmitter ) for application kit
3V ~ 13.6V HK526A Typical working voltage at 5V

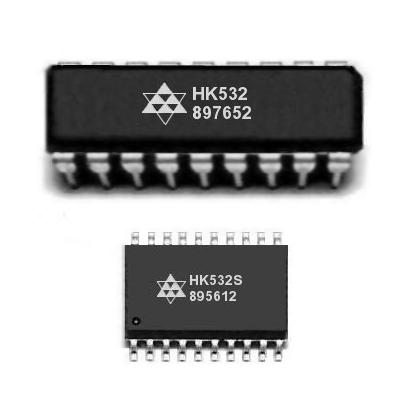

HK532

DIP-18L

SOP-20L

* 12 Tri-states address bus & 6 data bus
* 531441 codes for encoding code ( transmitting code ) setting option
* A pair with HK532A decoder ( receiver ) for application kit
3V ~ 13.6V HK532 Typical working voltage at 12V

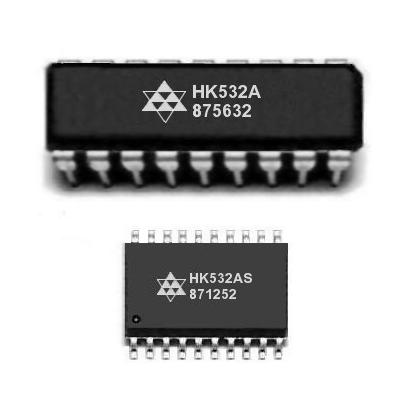

HK532A

DIP-18L

SOP-20L

* 12 Tri-states address bus & 6 data bus
* 531441 codes for encoding code ( receiving code )setting
* Output data signal by latch type or momentary type option
* A pair with HK532 encoder ( transmitter ) for application kit
3V ~ 13.6V HK532A Typical working voltage at 5V
