PRODUCT

(8) Voice Recording / Playback IC

P/N Package Type Function Work
Voltage
Short Form Data Sheet

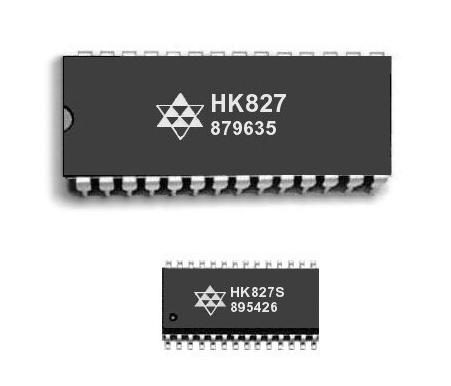

HK827

DIP-28L

SOP-28L

* 20 ~ 30 sec. recording duration
* Option edge or level trigger for voice playback trigger input
* Built eliminate battery backup circuit in IC body
* Maximum can be arriving 30 sec. base on sample rate setting
3.8V ~ 7.0V HK827
(short form)
HK827

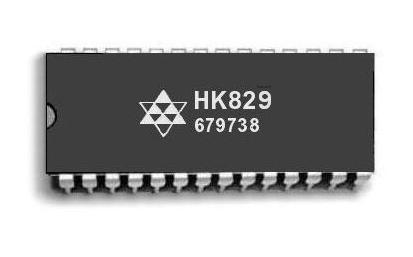

HK829

DIP-28L

* 40 ~ 60 sec. recording duration
* User-selectable message recording , options by 1,2,4 message
* Built eliminate battery backup circuit in IC body
* DAC and PWM module with high quality analog to digital, resolution up to 16-bits
* Maximum can be arriving 60 sec. base on sample rate setting
4.5V ~ 6.9V HK829
(short form)
HK829
